Capacitor 1uF 20kv ,1000nF 20000v DC , Pulse Capacitor, HV Capacitor

  • 1
  • 2

Brand Name : Pluspark

Model Number : FC200-105

Place of Origin : Shanghai ,China

MOQ : 10

Payment Terms : Paypal , T/T,Western Union

Delivery Time : 25

Contact Now

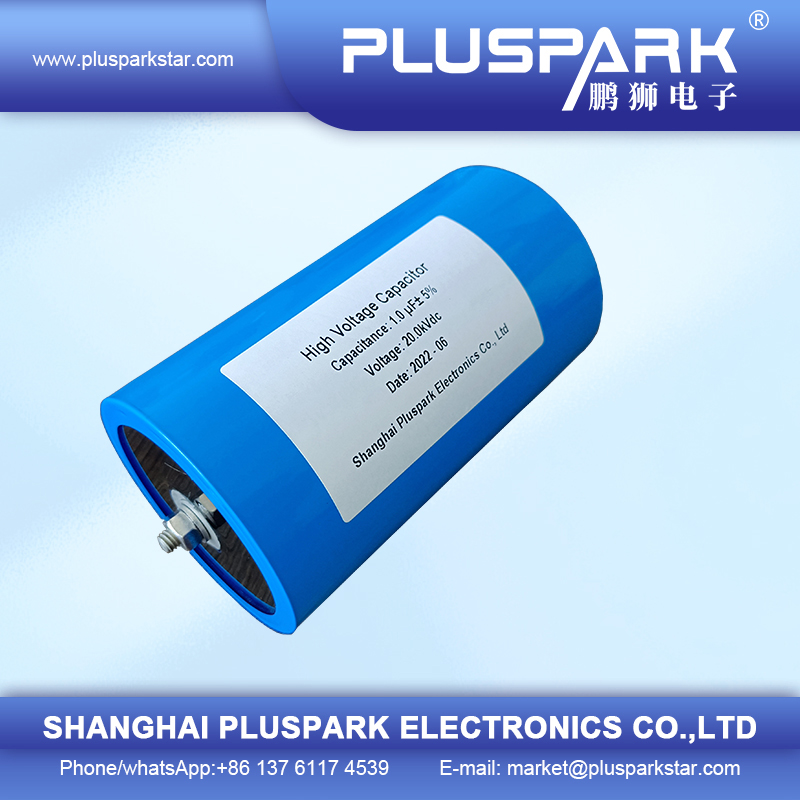

Plastic case Power Film capacitor 20kV 1.0MFD ,Axial Threaded Terminals,

For GTO clamping, snubber ,pulse power supply application.

Diameter: 123mm , Length: 152mm,

Desc : ISO9001:2015 Certified Professional “Pluspark" brand HV Pulse capacitor 1µF 20000V-DC, it is a polypropylener metallized film
capacitor with a cylindrical , plastic box type design filled with resin , and uses hole axial terminals.

Features:

  • Strong mounting ,
  • Low inductance,
  • High ripple current.

Dimensions:-Millimeters

Capacitor 1uF 20kv ,1000nF 20000v DC , Pulse Capacitor, HV Capacitor
